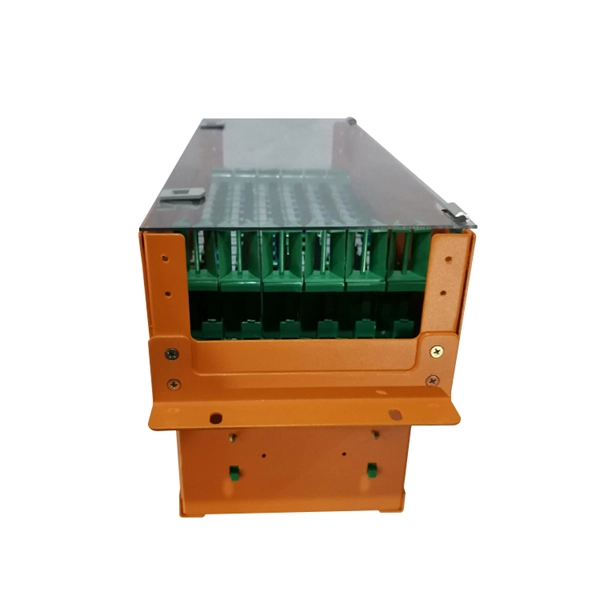

Dense Wavelength Division Multiplexing Equipment

A DWDM equipment set consists of transponders, multiplexers, demultiplexers, optical amplifiers, and add/drop modules that enable high-capacity, multi-wavelength data transmission over a single optical fiber.

Overview of DWDM Technology

Dense Wavelength Division Multiplexing (DWDM) is an advanced fiber-optic communication technique that transmits multiple data channels simultaneously over a single optical fiber using different light wavelengths (colors) within the C-band (1530–1565 nm) or L-band (1565–1625 nm) transmission windows . DWDM allows carriers and data centers to maximize fiber utilization, increase bandwidth, and support high-speed services such as IP, ATM, SONET/SDH, video, and voice .

Key Components of a DWDM Equipment Set

1. Transponders / Muxponders These devices convert electrical signals into optical signals and assign them to specific wavelengths. Muxponders can combine multiple lower-speed channels into a higher-speed wavelength for efficient transmission .
2. Multiplexers (Mux) Multiplexers combine multiple optical signals of different wavelengths onto a single fiber, enabling simultaneous transmission without interference .
3. Demultiplexers (Demux) Demultiplexers split the combined optical signal back into individual wavelengths at the receiving end, allowing each channel to be processed separately .
4. Optical Amplifiers (e.g., EDFAs) Erbium-Doped Fiber Amplifiers (EDFAs) boost the optical signal without converting it to electrical form, extending transmission distance and supporting multiple channels simultaneously .
5. Add/Drop Modules These modules allow specific wavelengths to be inserted or removed from the fiber path without affecting other channels, providing flexibility for network routing and service provisioning .
6. Tunable Devices Tunable transceivers or filters allow dynamic wavelength assignment, enabling network operators to adjust channels as needed for traffic optimization .

Benefits of DWDM Equipment

• High Capacity: Supports dozens to hundreds of channels on a single fiber, significantly increasing bandwidth density .
• Scalability: New channels can be added without laying additional fiber .
• Flexibility: Add/drop modules and tunable devices allow selective routing of wavelengths .
• Cost Efficiency: Optical amplification reduces the need for electrical regeneration, lowering operational costs .
• Long-Distance Transmission: DWDM systems can transmit data over hundreds of kilometers with minimal signal degradation .

Applications

DWDM equipment sets are widely used in:

• Telecommunication networks for backbone and metro networks.
• Data centers for high-speed interconnects.
• Enterprise networks requiring high-capacity, low-latency links.
• Carrier networks to support multiple services over a single fiber infrastructure . In summary, a DWDM equipment set integrates multiple optical devices to efficiently manage high-capacity, multi-wavelength data transmission, providing scalability, flexibility, and cost-effective solutions for modern optical networks .
