How to divide 288 optical cables

A 288-core optical cable can be divided using ribbonized fiber handling, optical splitters, or 288-core joint boxes to distribute signals efficiently while maintaining signal integrity.

Understanding the Cable Structure

A 288-core optical cable typically consists of 12-fiber ribbons grouped into sub-unit tubes, with each tube containing multiple ribbons for easier handling and mass fusion splicing . The fibers are color-coded and ribbonized, which allows them to be separated and managed individually or in groups without damaging the cable . This design is common in data centers and high-density network environments.

Methods to Divide the Cable

1. Using Optical Splitters
   • Passive splitters divide the incoming light signal into multiple paths without amplification, suitable for local or metropolitan networks .
   • Active splitters or optical add-drop multiplexers (OADM) can split and amplify signals for long-haul networks, ensuring signal strength over greater distances .
   • Splitters can be configured in ratios like 1:2, 1:4, 1:8, or higher, depending on the number of endpoints required .

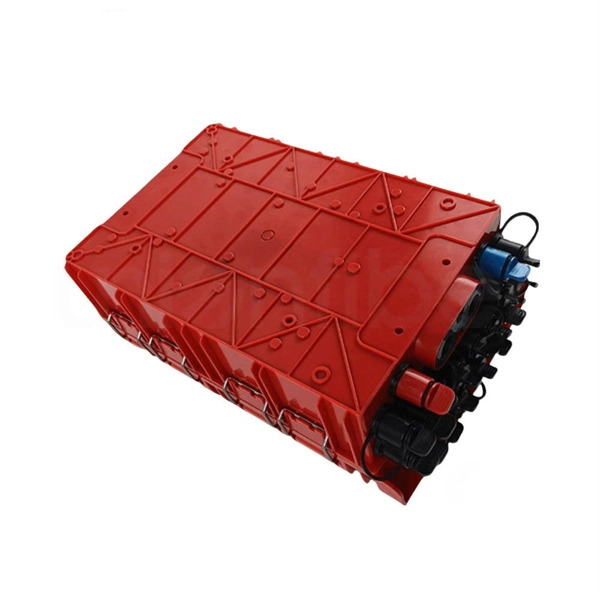

2. Using a 288-Core Joint Box
   • A 288-core joint box allows the cable to be terminated and distributed into multiple smaller fiber runs while maintaining organization and protection .
   • This method is space-efficient, scalable, and cost-effective, ideal for large-scale networks where multiple devices or racks need connections .
   • The joint box protects fibers from environmental factors and simplifies future network expansion .
3. Ribbon Handling and Mass Fusion Splicing
   • Remove the outer jacket and sub-unit tubes carefully to expose the ribbons .
   • Ribbons naturally open into color-coded fibers, which can then be mass fusion spliced to other fibers or connectors, such as 12-fiber MPO connectors .
   • This method is commonly used in data center backbone cabling for high-density connections.

Best Practices

• Minimize signal loss: Use high-quality splitters or amplifiers if splitting over long distances .
• Label fibers clearly: Color-coded ribbons and tubes help prevent misconnection.
• Protect fibers: Use joint boxes or protective trays to avoid bending or physical damage.
• Plan distribution: Divide fibers logically according to network topology to simplify maintenance and future upgrades. By combining ribbonized fiber management, optical splitters, and joint boxes, a 288-core optical cable can be effectively divided to serve multiple endpoints while maintaining high-speed, reliable connections .
