The twelve-color sequence of the optical cable standard is
The standard twelve-color sequence for optical fibers under TIA-598-C is: Blue, Orange, Green, Brown, Slate (Gray), White, Red, Black, Yellow, Violet, Rose (Pink), and Aqua.
Detailed Explanation

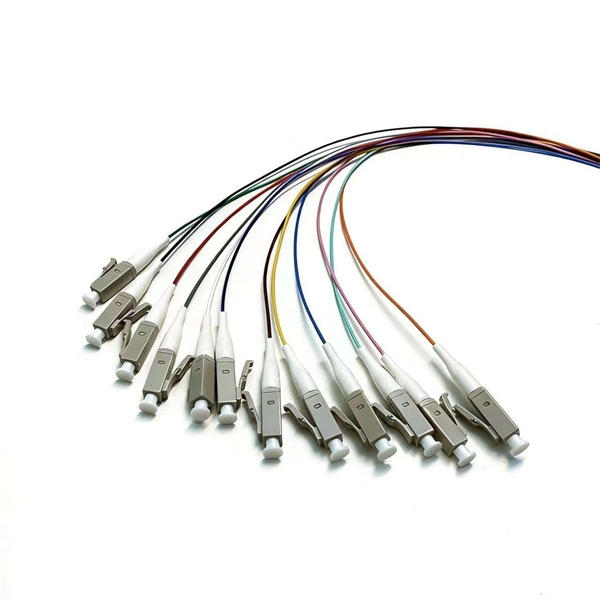

The TIA-598-C standard defines a universal 12-color sequence for identifying individual fibers within a cable, whether in loose-tube, ribbon, or bundled configurations. Each fiber is assigned a unique color in the following order: 1-Blue, 2-Orange, 3-Green, 4-Brown, 5-Slate (Gray), 6-White, 7-Red, 8-Black, 9-Yellow, 10-Violet, 11-Rose (Pink), 12-Aqua . For cables containing more than 12 fibers, the sequence repeats for the next group of fibers, often with a stripe, ring, or other marker to distinguish the repeated set. This system ensures that technicians can quickly and accurately identify fibers in high-count cables, such as 24, 48, or 144-fiber assemblies .
Application in Multi-Fiber Cables
- Loose-tube cables: Each tube contains up to 12 fibers, following the 12-color sequence. Tubes themselves may also be color-coded for identification.
- Ribbon cables: Fibers are arranged side-by-side in a flat ribbon, and each fiber follows the same 12-color sequence.
- High-count cables: The 12-color sequence is applied to both the buffer tube and the individual fibers inside it, allowing precise identification of any fiber within the cable .
Mnemonic for Memorization
A common mnemonic to remember the sequence is: "Boys Often Give Bad Stuff With Really Bad Yucky Vomit Red Apples", corresponding to Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua . This standardized color coding is critical for installation, splicing, and maintenance, ensuring consistency across different manufacturers and cable types.
