One machine and one switch in the distribution box

The principle of "one machine, one switch" ensures that each electrical device is controlled by its own dedicated switch and protection within a distribution box, enhancing safety and reliability.

Concept Overview

The idea of one machine, one switch is a safety and organizational principle in electrical distribution systems. It means that each electrical device or machine is connected to a dedicated switch and protective device (such as a circuit breaker or residual current device) within a distribution box. This prevents multiple devices from being controlled by a single switch, reducing the risk of overloads, short circuits, or accidental shutdowns ( ).

Distribution Box Levels

Electrical distribution is often organized into three levels:

• Primary Distribution Box: The main distribution cabinet, usually located in a distribution room. It contains isolating switches, circuit breakers, and metering systems. It distributes power to secondary boxes but does not directly supply individual devices ( ).

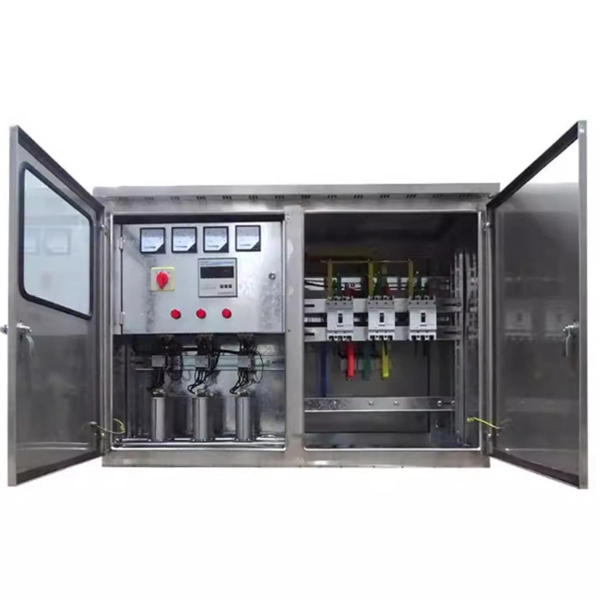

• Secondary Distribution Box: Also called a sub-distribution box, it serves specific areas or equipment clusters. It typically contains large three-phase circuit breakers and may have inner and outer doors for safety and aesthetics ( ).

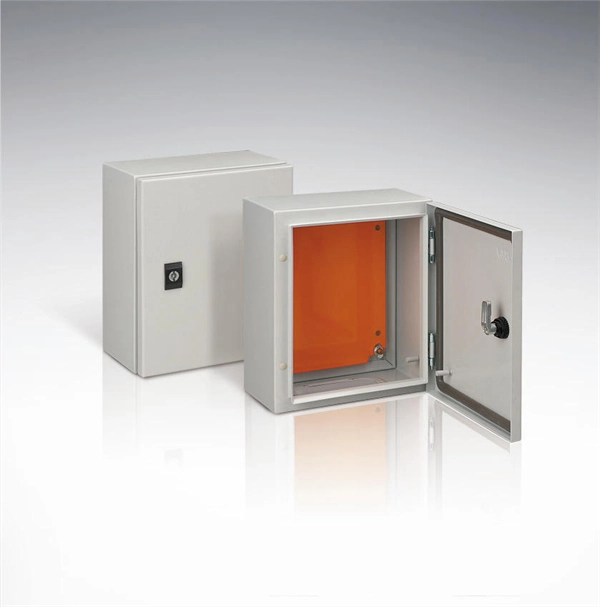

• Tertiary Distribution Box (Switch Box): This is the final level, directly connected to individual machines or devices. It contains single-phase circuit breakers or residual current devices (RCDs) and ensures that each device has its own switch and protection ( ).

Safety and Practical Benefits

1. Overload Protection: Each device has its own breaker, preventing one device from affecting others.
2. Maintenance Safety: Individual switches allow safe isolation of a single machine without shutting down the entire system.
3. Compliance: Construction and electrical standards often require this setup to meet safety regulations.
4. Clear Organization: Makes troubleshooting and monitoring easier, especially in complex installations ( ).

Implementation

In practice, a tertiary distribution box is installed under the secondary box, and the electrical equipment is connected to its dedicated switch. This forms a three-level protection system: main distribution, sub-distribution, and final switch box, achieving the goal of one machine, one switch, and one protection ( ). This setup is widely used in construction sites, residential buildings, and industrial applications, ensuring both safety and operational efficiency.
