How to get fiber optic cables into a network cabinet

Fiber optic cables should be routed into a network cabinet using proper cable management, adapters, patch cords, and splice trays to ensure low signal loss and organized connections.

Planning and Preparation

Before bringing fiber cables into a cabinet, plan the layout carefully. Identify the entry points for cables, the location of patch panels, and the routing paths to switches or other network equipment. Ensure there is enough space for future expansion and that the cabinet can accommodate both horizontal and vertical cable management tools . Proper planning reduces clutter, prevents bending beyond the minimum radius, and maintains airflow.

Routing Fiber Cables

Fiber cables should enter the cabinet through designated cable entry points or knockouts. Use ducts or conduits if necessary to protect the fibers from physical damage. Avoid sharp bends or kinks, as improper bending is a major cause of signal loss . Inside the cabinet, route cables along horizontal and vertical cable managers such as D-rings, finger ducts, or lacer bars to keep fibers organized and separated from power cables .

Connecting Fibers

Inside the cabinet, do not directly splice fibers unless using a dedicated splice tray. Instead, terminate fibers with connectors and use patch cords and adapters to link them to patch panels or network equipment. This approach allows flexible reconfiguration and maintenance while minimizing insertion loss . Steps include:

1. Inspect and clean connectors with lint-free wipes or fiber cleaning pens.
2. Identify connector types (SC, LC, MPO, APC/UPC) to ensure compatibility.
3. Insert connectors into adapter panels securely, ensuring each port clicks firmly .

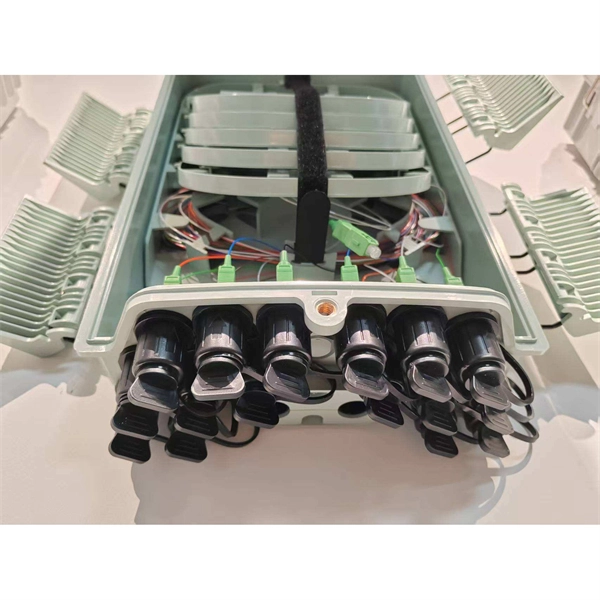

Using Splice Trays

If splicing is required, use fiber splice trays inside the cabinet to protect and organize the spliced fibers. Mechanical or fusion splicing can be performed within these trays, which provide compartments to manage excess fiber length and maintain long-term stability . Splice trays prevent micro-bending and physical stress on the fibers.

Best Practices

• Maintain the minimum bend radius for all fiber cables.
• Separate fiber and power cables to avoid interference and maintain safety.
• Label all cables and ports for easy identification and troubleshooting.
• Use standardized cabling practices to ensure compliance with telecom standards and future scalability . By following these steps, fiber optic cables can be safely and efficiently brought into a network cabinet, ensuring reliable network performance, easy maintenance, and organized cabling.
