Termination of Communication Optical Cables

Optical cable termination involves preparing fiber optic cables for connection using either splicing or connectors to ensure low signal loss and reliable network performance.

What is Optical Cable Termination

Optical cable termination is the process of preparing the end of a fiber optic cable to connect to another fiber, a device, or a network. Proper termination is essential to minimize signal loss, protect the fiber from damage, and maintain network reliability. Termination enables cross-connections and efficient distribution of light signals in communication systems, including data centers, telecommunications, and broadband networks .

Primary Termination Methods

1. Fusion Splicing

Fusion splicing permanently joins two fiber ends using an electric arc to melt and fuse them together. It is widely used for long-distance or high-bandwidth applications due to its low insertion loss (around 0.1 dB) and high durability. Fusion splicing is ideal for permanent installations and reduces the need for connectors and patch panels, but it requires specialized equipment and trained personnel .

2. Connectors

Connectors provide removable terminations for quick and flexible connections. Common types include:

• Epoxy-style connectors: Use adhesive to secure the fiber; suitable for permanent installations but time-consuming.
• Pre-polished connectors: Factory-polished for convenience; better for temporary setups.
• Quick connectors: Mechanical splice points for rapid field termination; user-friendly and suitable for urgent installations . Connectors are essential for patch panels, network devices, and situations requiring frequent reconfiguration.

Key Performance Metrics

• Insertion Loss: The reduction in signal power at the connection point; lower values indicate better performance. High-quality terminations can achieve ≤0.4 dB, while industry standards allow up to 0.75 dB .
• Return Loss: The amount of light reflected back toward the source; high return loss indicates minimal reflection and better signal integrity .
• Attenuation: Signal loss over distance; proper termination reduces additional losses at connection points .

Tools and Best Practices

Successful termination requires precision tools such as fiber strippers, cleavers, fusion splicers, and inspection microscopes. Best practices include:

• Keeping fiber ends clean and free of dust or debris.
• Using proper alignment techniques for connectors or splices.

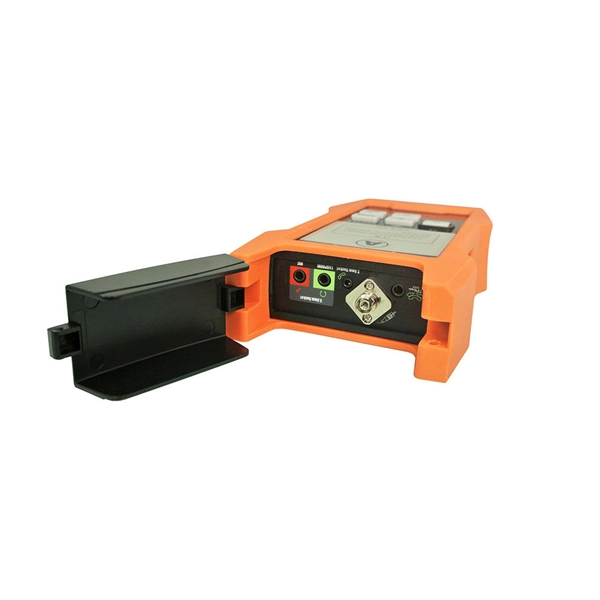

• Testing terminated fibers with an Optical Time Domain Reflectometer (OTDR) to verify insertion loss and overall link quality .

Conclusion

Effective optical cable termination is critical for high-performance, reliable communication networks. Choosing between fusion splicing and connectors depends on the application, required durability, and flexibility. Proper technique, tools, and testing ensure minimal signal loss, long-term network stability, and efficient data transmission .
